Strong inflatable booms

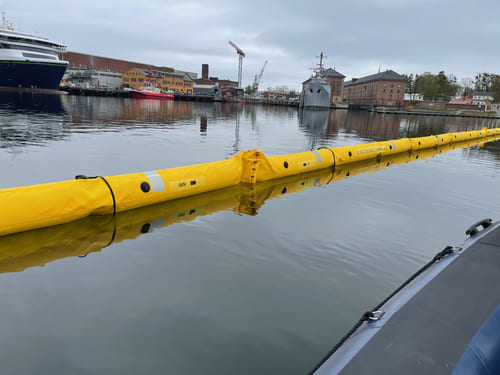

The ECOSAFE booms are conventionally inflatable oil containment booms with easily replaceable internal buoyancy chambers. The cylindrical floats with short, independent buoyancy chambers give the boom excellent floatability and particularly good wave following properties. Should the boom suffer damage, it is easy to replace the affected buoyancy chamber on site.

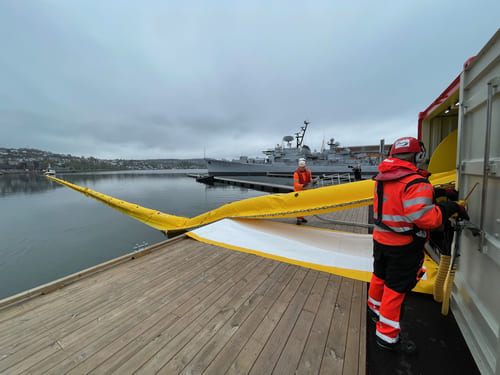

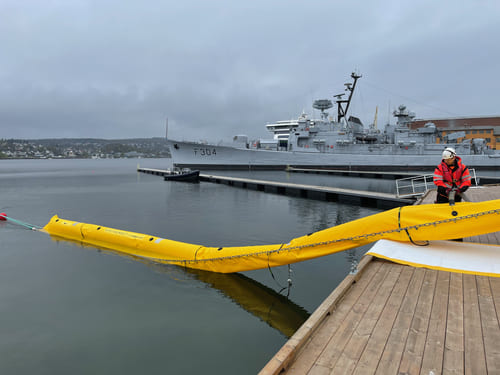

ECOSAFE booms are designed to be easy to deploy and give reliable operation with low personnel requirements.  The proven design, low inflation pressure and high buoyancy to weight ratio make these booms an effective tool for oil containment, even in adverse weather conditions. The booms are designed to remain in the water for long periods of time.

ECOSAFE booms are made from high frequency welded heavy PU/PVC blended fabric, being resistant to oil, salt, and UV light. ECOSAFE booms are designed to provide increased visibility in the dark. The booms are bright yellow and have pockets for flashing, high-intensity LED marker lights every 25 metres in addition to generously sized welded-on reflectors on the floats every 5 metres. ECOSAFE booms are also available in an extra heavy-duty version with double fabric thickness in the floats, being stronger than most booms made of rubber, Hypalon or neoprene

Image 1
Image 1
Image 1

Specifications

Product name

ECOSAFE 1100

ECOSAFE 1400

ECOSAFE 1800

Inflation system

Air/Manual

Type of floatation

Air inflated, separate chambers

Chamber length, if applicable [m]

3

3

3

Section length [m]

25

25

25

Freeboard height [mm]

400

600

800

Draft (skirt) [mm]

700

800

1000

Total height [mm]

1100

1400

1793

Fabric type

Yellow TPU-PVC blend coated PES

Fabric weight [g/m2]

1250

1250

1250

Weight dry [kg/m]

6

8

12

Ballast

Thermo-galvanized high tensile chain

Handling straps

Yes

Mooring points

Yes

Buoy light pockets

Yes

Reflex

Yes

Sea state, Beaufort

4

5

6

Deployment time – per 100 m [min]

5

5

6

×
