Ecoflex

Rapid response fence boom
The ECOFLEX Series booms are easy to handle high quality fence booms for use in harbours and coastal applications.

Construction
The ECOFLEX booms are made from high-frequency welded PVC-coated fabric, which is resistant to oil, salt, and UV light. The floats are made of flat, closed-cell foam and the booms feature vertical fibreglass stiffeners. The boom is fitted with handles, have pockets for flashing, high-intensity LED marker lights every 25 metres, generously sized welded-on reflectors, and a galvanized ballast chain, making them extremely robust while being of low weight.  Flexi Booms are equipped with ASTM connectors as standard.

Deployment

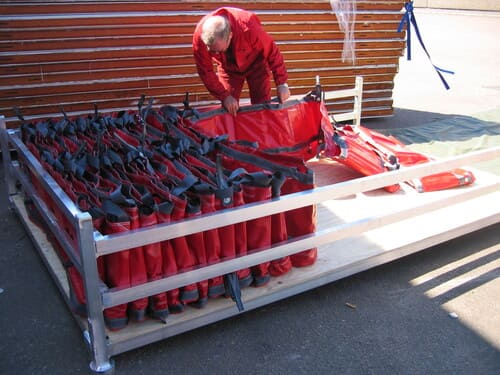

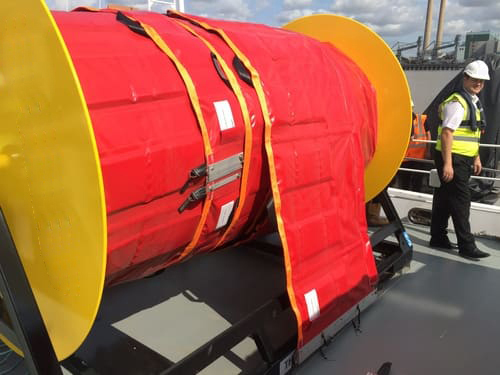

ECOFLEX Series booms’ compact design means that they can be stored and deployed from a boom reel or manually from a customised container, requiring only 2 operators.  There are handles placed every metre along the top of the boom for ease of handling.  Retrieval is equally straight forward, and the booms’ flat surfaces make them easy to clean.

Specifications

Product name

ECOFLEX 500

ECOFLEX 750

ECOFLEX 900

Type of floatation

Solid foam

Section length [m]

25

25

25

Freeboard height [mm]

200

250

300

Draft (skirt) [mm]

300

500

600

Total height [mm]

500

750

900

Fabric type

Yellow PVC coated PES

Fabric weight [g/m2]

950

950

950

Weight dry [kg/m]

3

4

5

Ballast

Galvanized chain

Handling straps

Yes

Mooring points

Yes

Buoy light pockets

Yes

Reflex

Yes

Sea state, Beaufort

2

2-3

3

Deployment time

Rapid
